please be noted that this device is for EU market, which can't be used in following countries:
America, Canada, Brazil, Japan,Korea, Chile

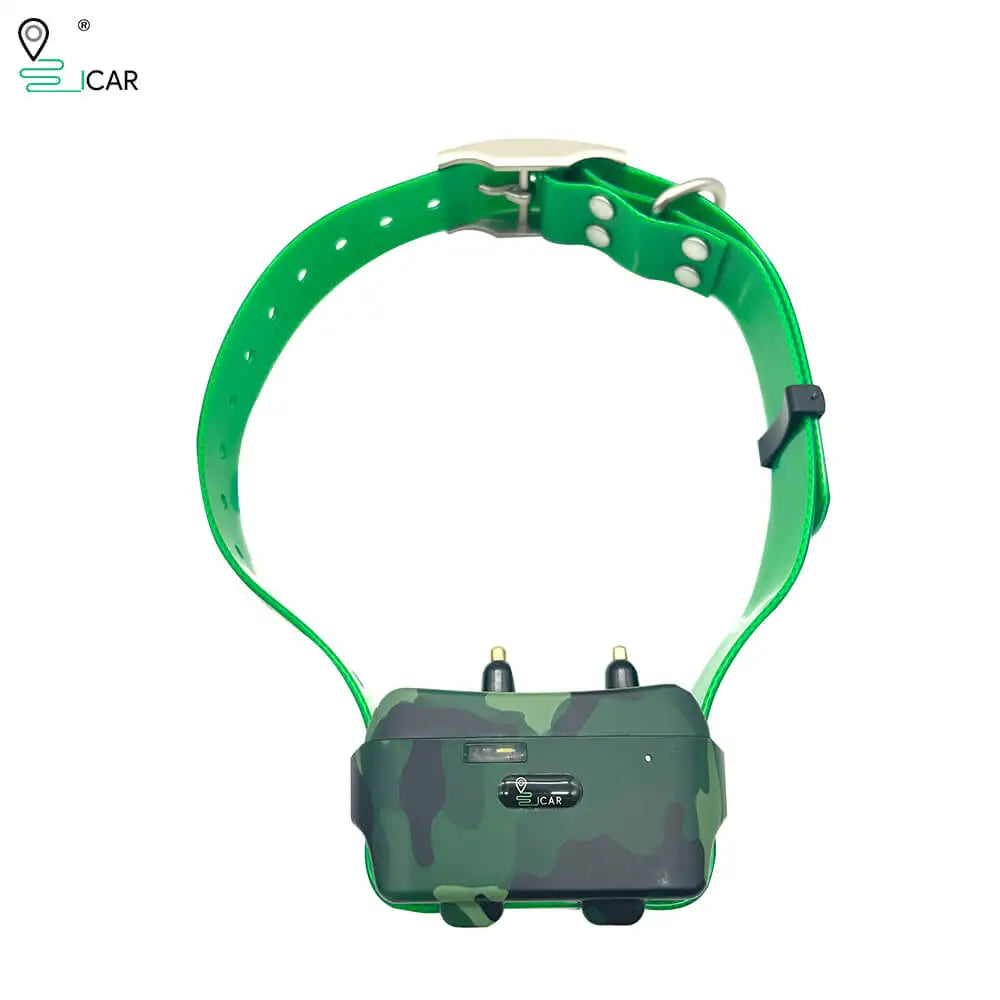

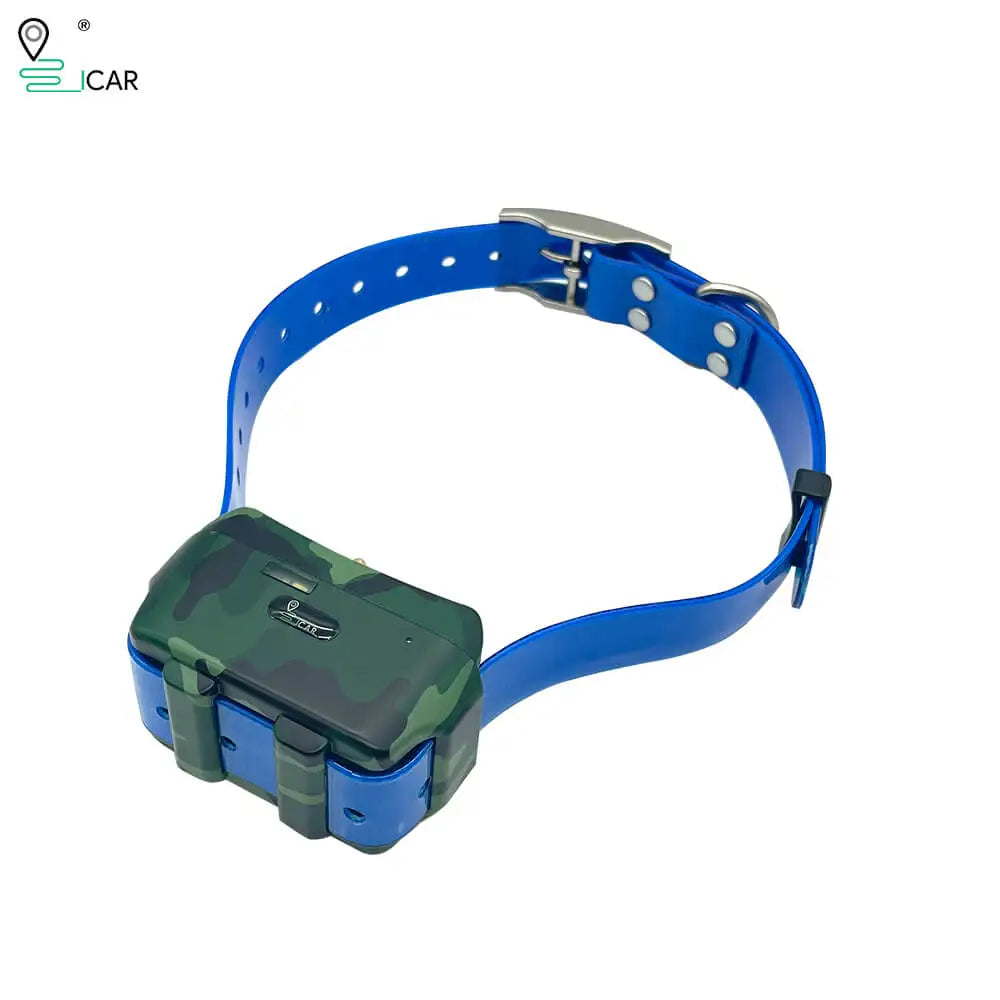

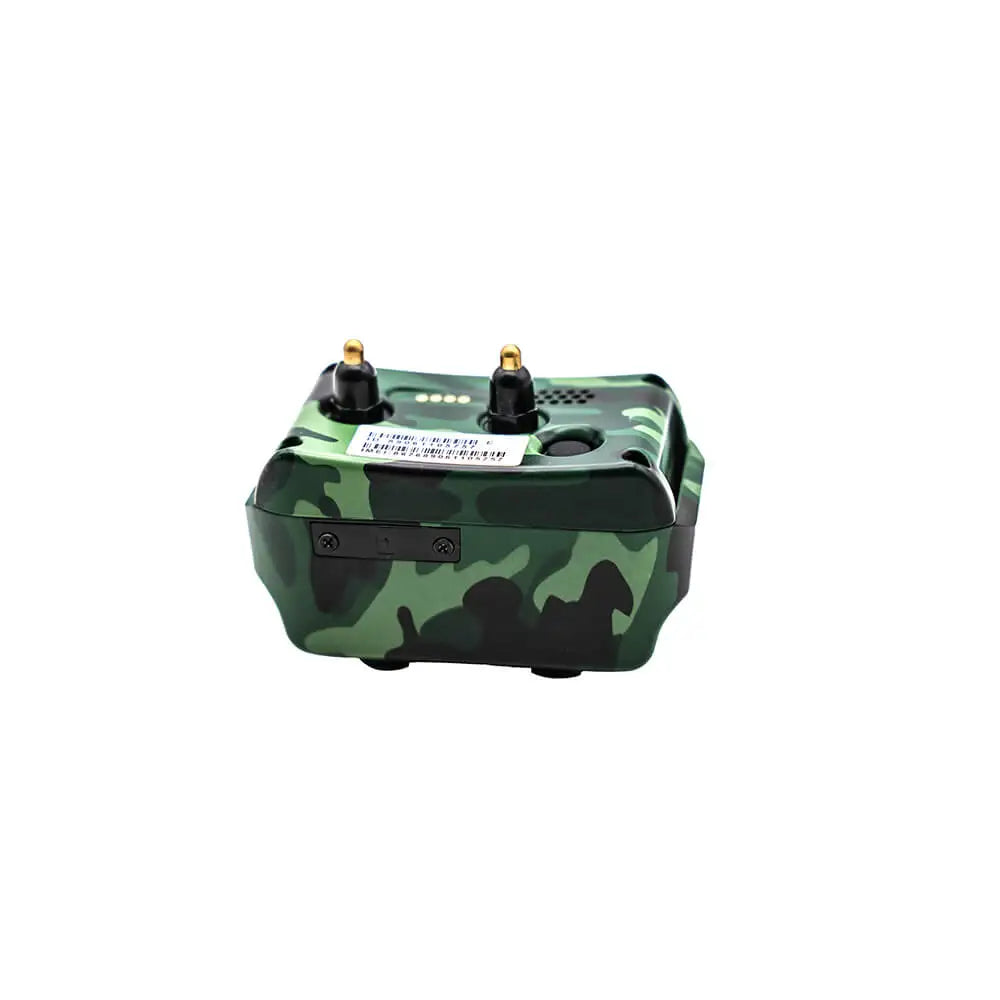

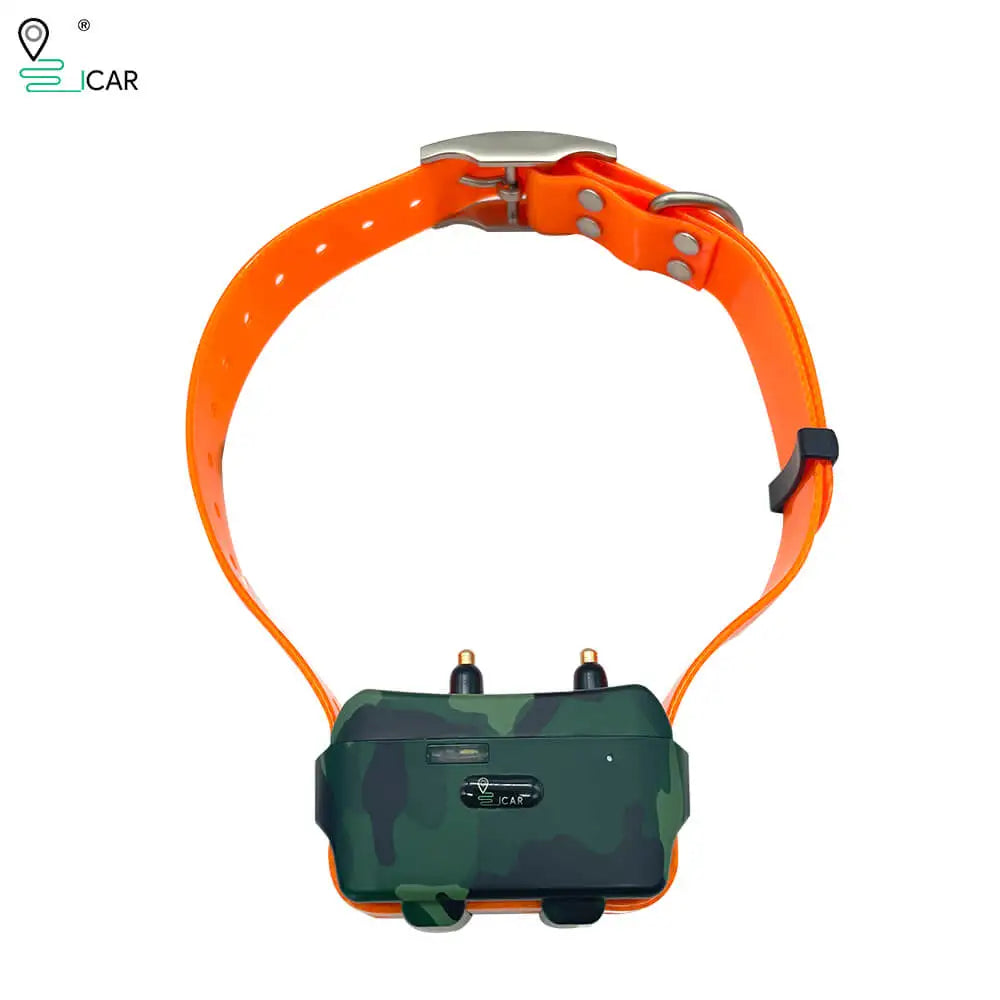

Parameters of IK122T Pro 4000mah
Notice before order:
What are differences between IK122T and IK122T Pro?
1.Two way communication with dog(with built-in microphone and speaker)
2.Dog Barking Indicator (Default off to save power, owner can turn it on by the APP)
3.Displays the dog's altitude on the map
4.Vibration alarm to train dog
5.Bigger size of the IK122T Pro, easier for antenna to capture GPS signal.

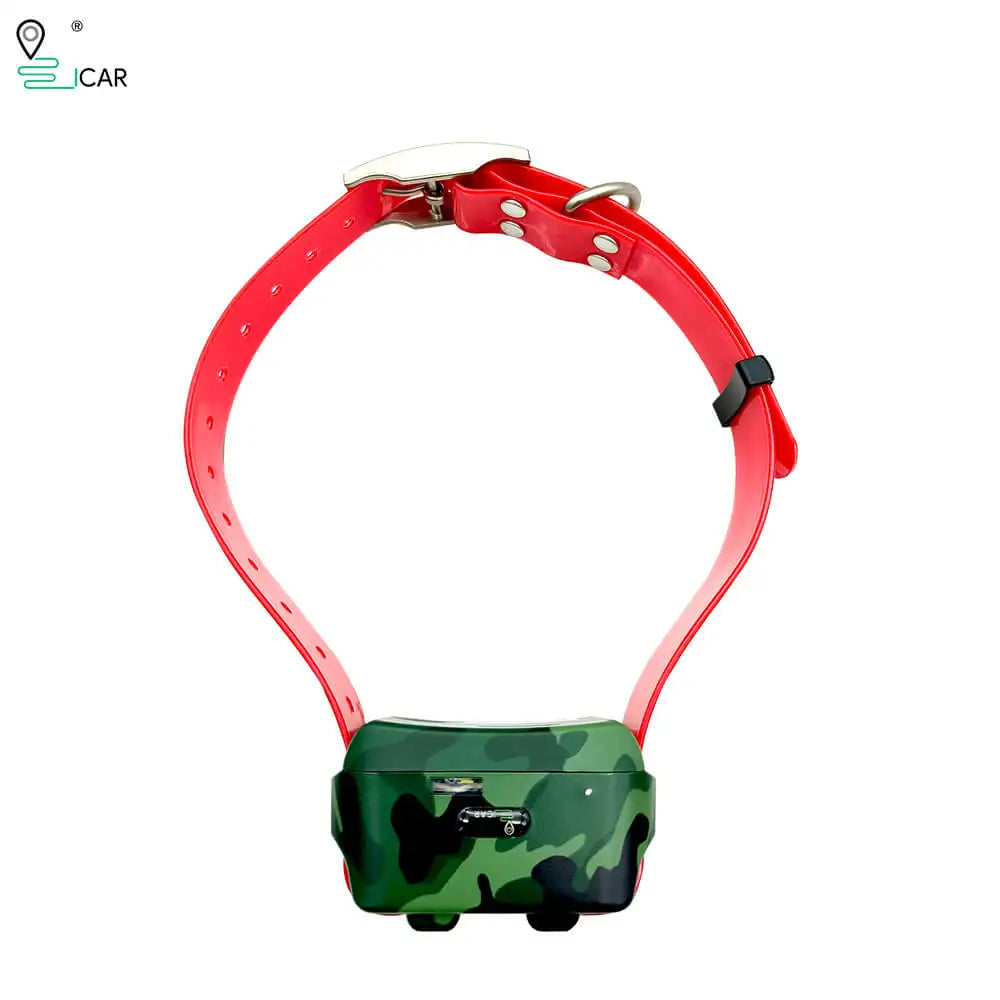

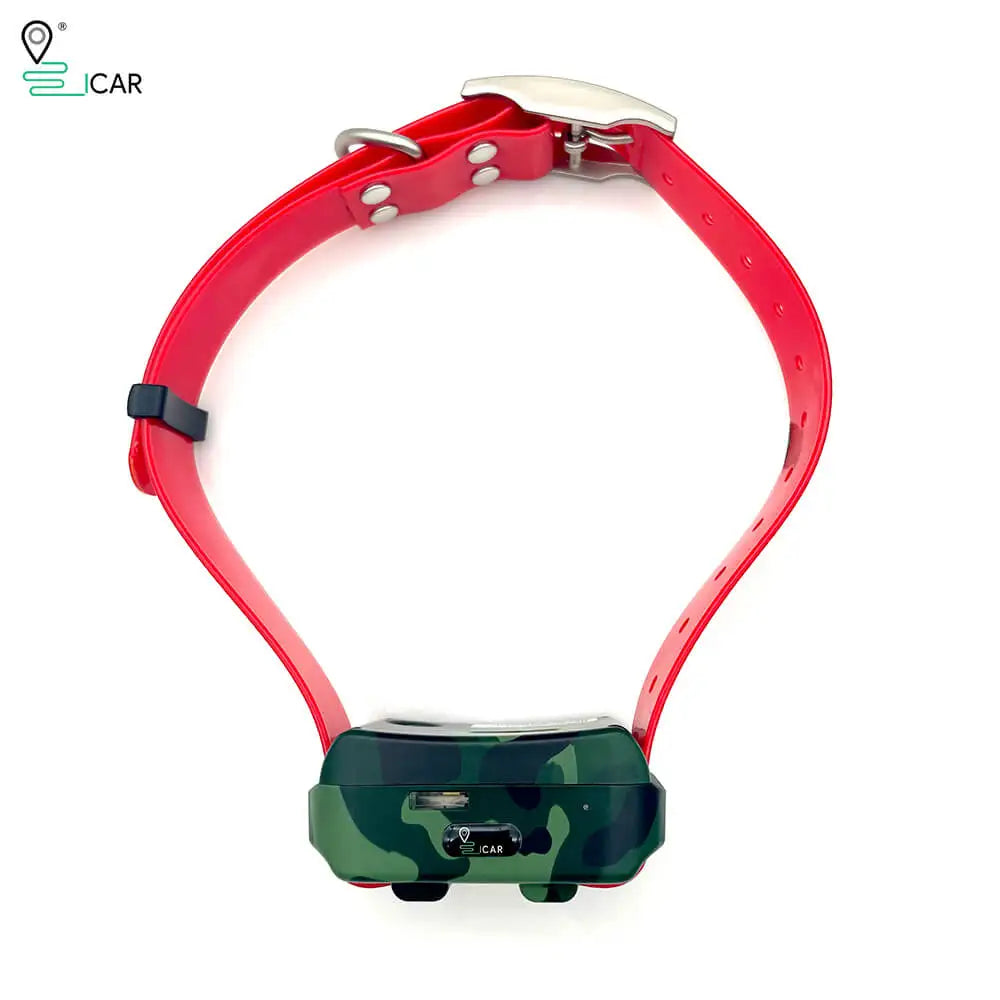

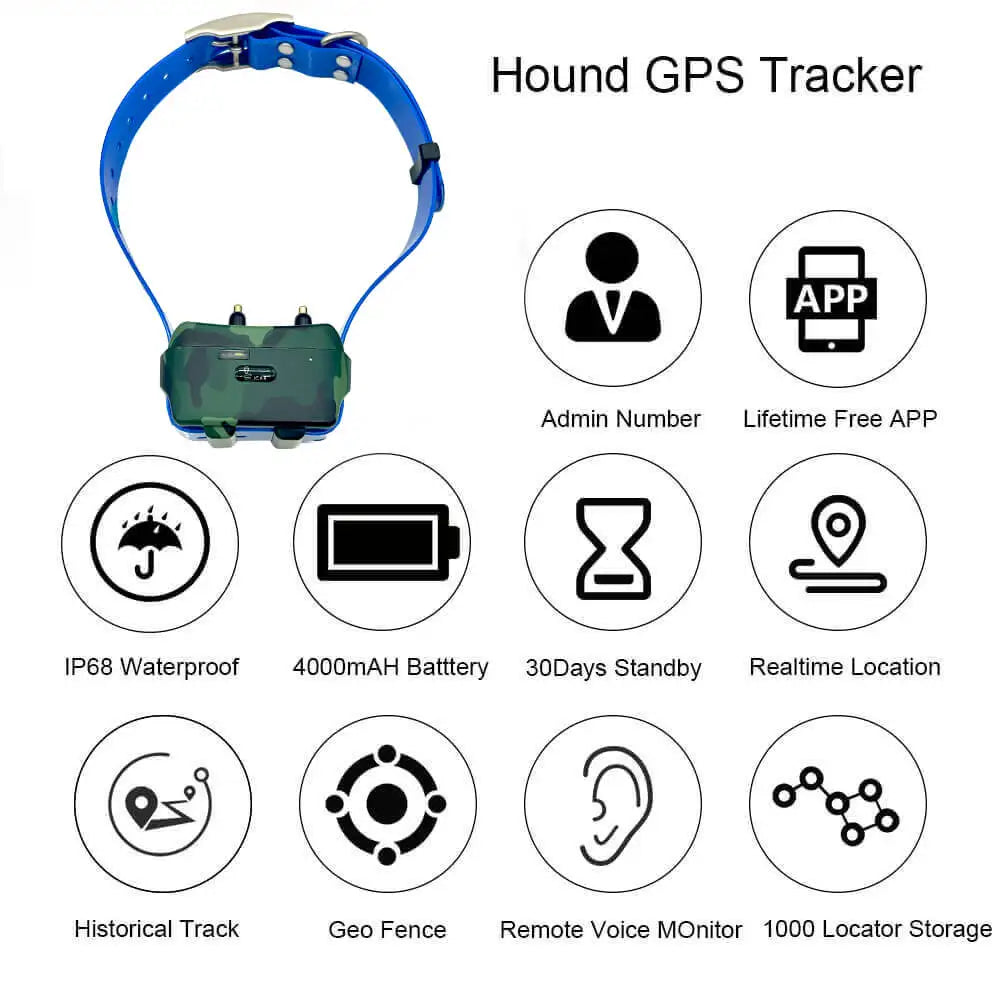

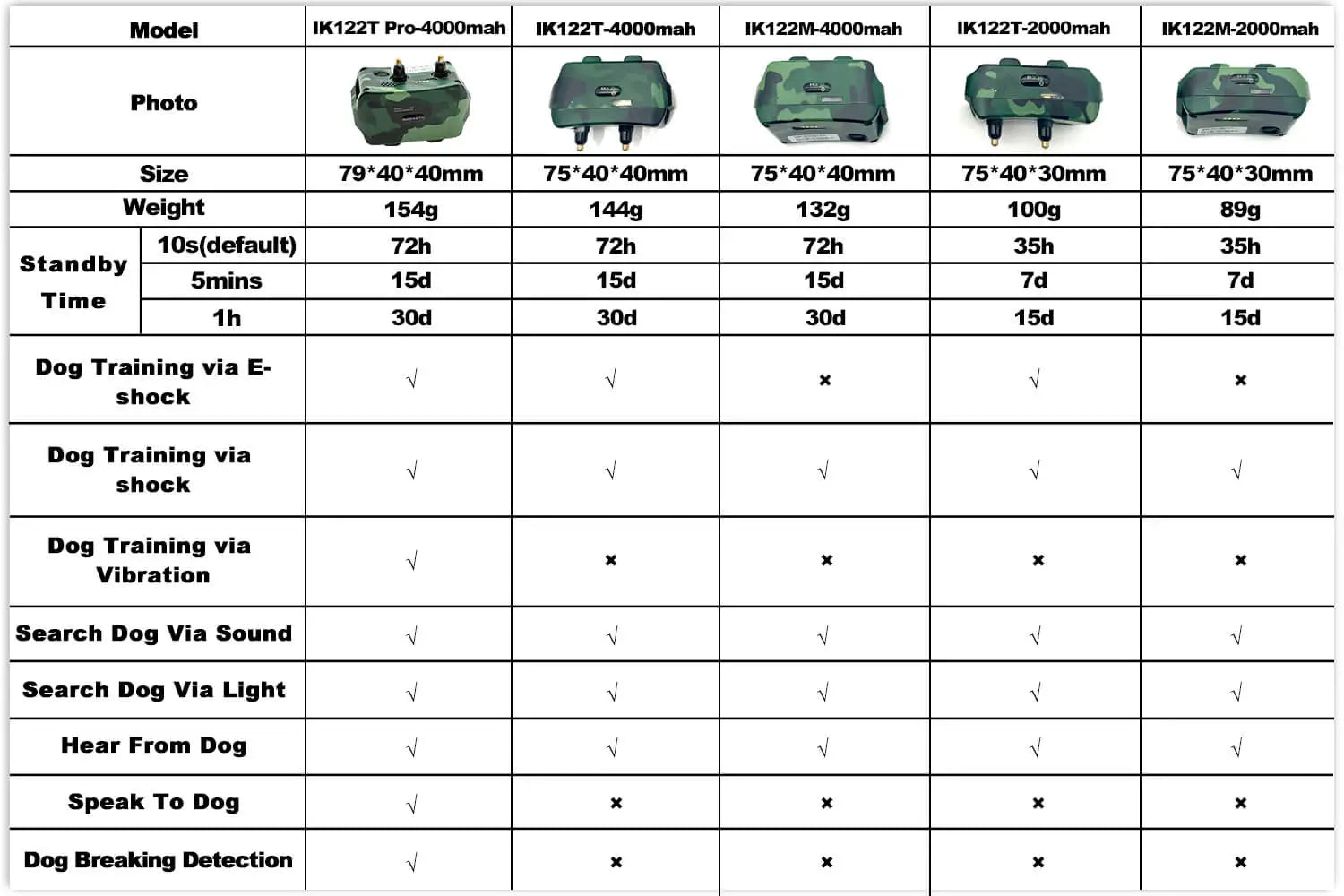

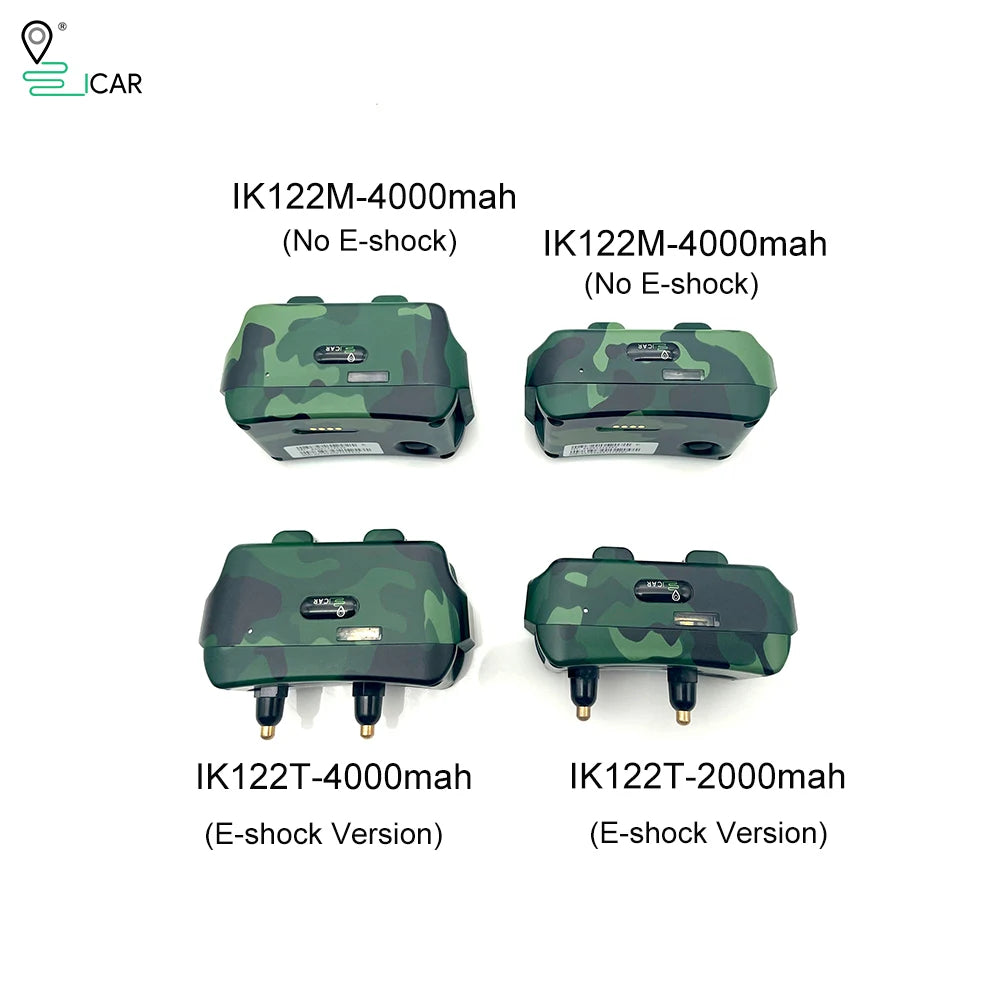

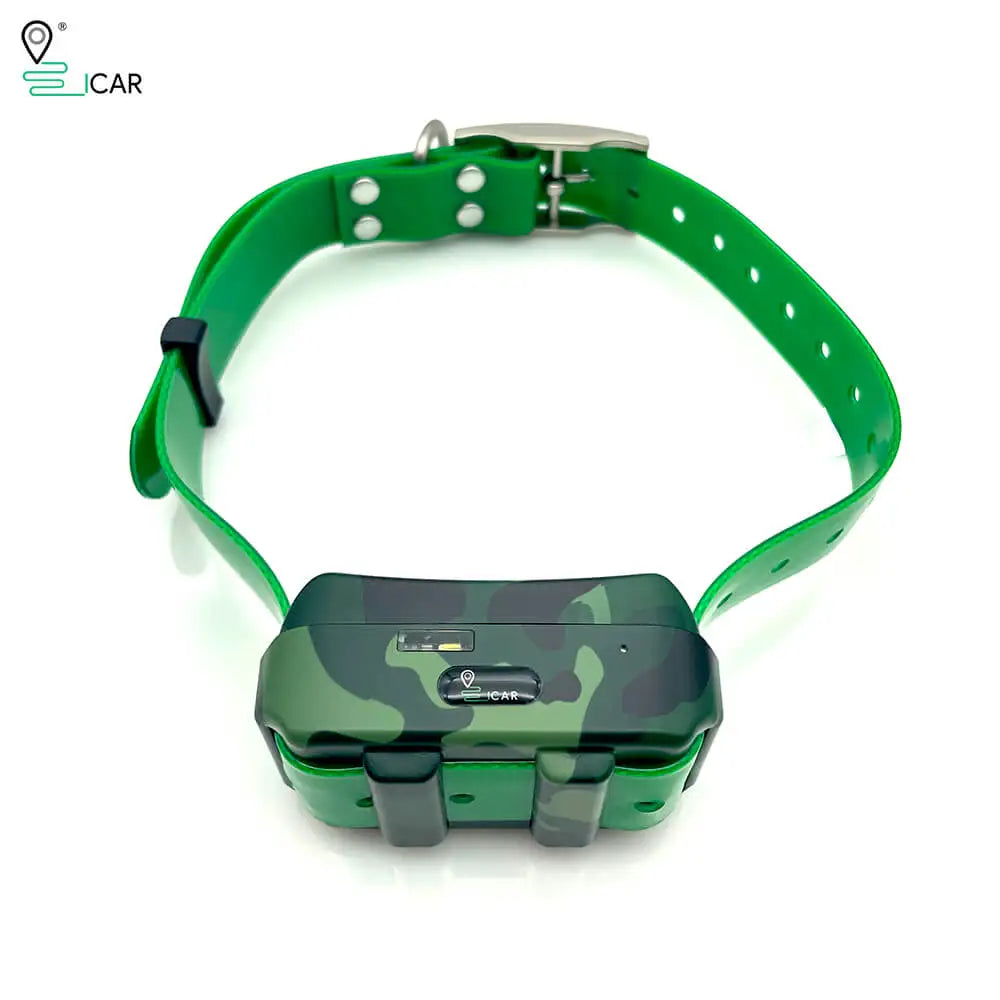

IK122T Pro-4000mah:E-shock & Dog Barking Indicator
IK122T-4000MAH: E-shock Version (stop producing)
IK122M-4000MAH: No E-shock Version
IK122T-2000MAH: E-shock Version
IK122M-2000MAH: N E-shock Version

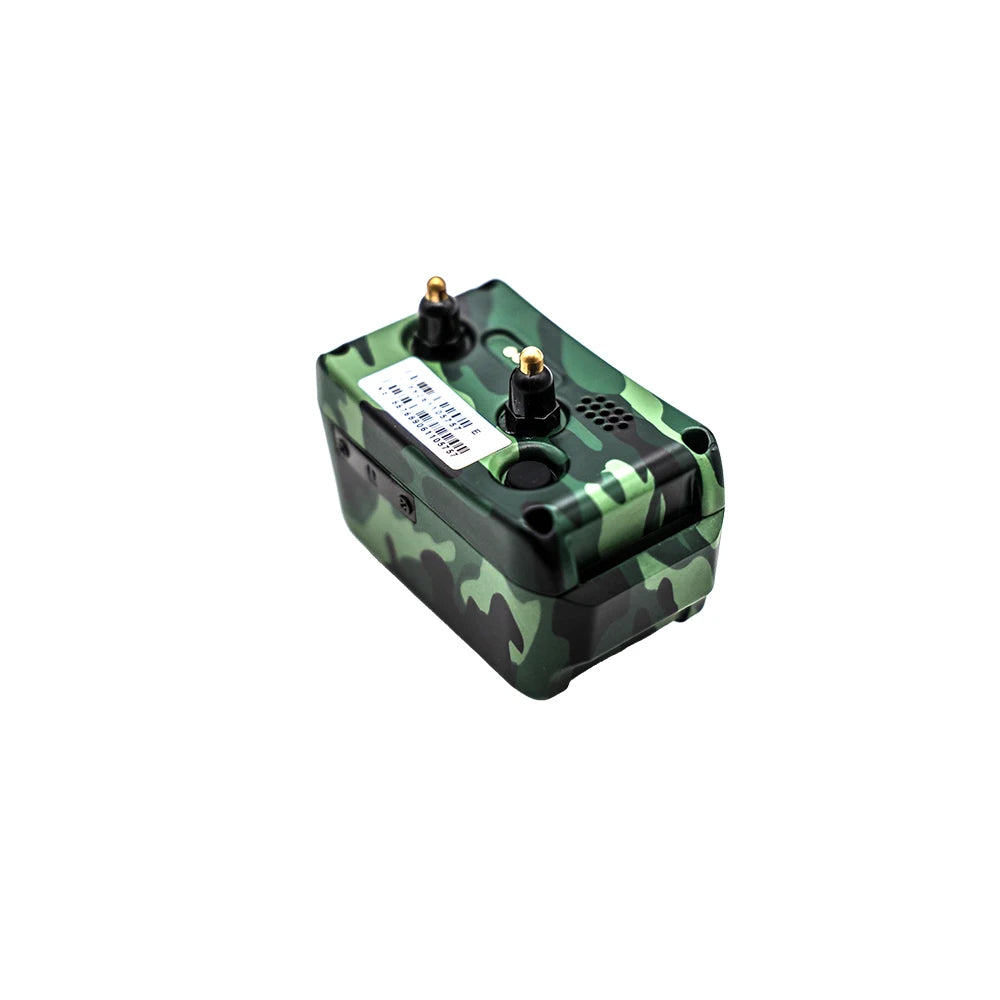

Device Dimension : 79*40*40mm
Device Weight :IK122 Pro (154g)
Telecom Chipset :Quectel EG915U-EU
Network : GSM&GPRS
Frequency Band :GSM 850/900/1800/1900MHz LTE: B1/B3/B5/B7/B8/B20/B28
Location Chipset :Quectel EG915U-EU
Location Way : LBS/AGPS/GPS/Glonass
Location accuracy : <10 meters
Tracking sensitivity : -162 dBm
Humidity : 5%--95% non-condensing
Internal Battery : 3.7V 4000mAh Li-Polymer battery
Standby Time :30 days(1h interval);15 days(5mins);60h(10s)
Charging Way : Magnetic Charger
Sim Card : Nano SIM card
Collar Length* Width: 73.6mm * 26mm
Warning: Sim card is not included in this device. You have to buy and insert a SIM card before the device work.

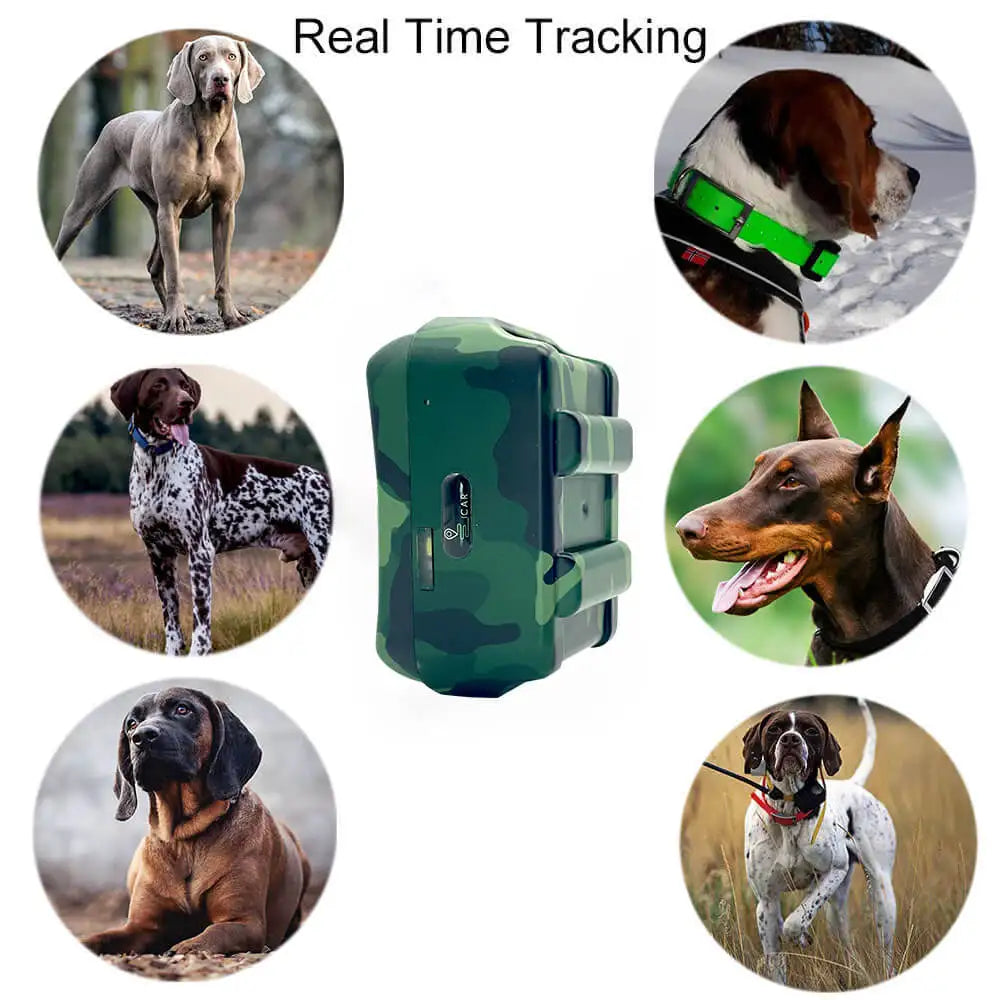

1. Live Location Updates: You can see the device moving on a map, usually with updates every few seconds (e.g., every 10s, 30s or 5mins). Set the location upload frequency on app setting>Positioning mode settings.
2. Dog Barking Indicator– Know When Your Dog is Barking in Real Time
The Dog Barking Indication feature in GPS tracker K122T Pro alerts you when your dog is barking, helping you understand its behavior, emotions, or environment — even when you're not nearby.
3. Altitude Display – Track Your Dog on the mountain
The GPS tracker can display your dog’s altitude (elevation above sea level) directly on the map, to help you easy find dog with not just distance, but height, too.
Note: there will be some error of the altitude, it is for reference only.
4. GPS Tracker IK122T Pro with Built-in Strobe Light
You can remotely activate the light from your smartphone APP.
Helps you spot your dog in low light or forest environments, when your dog is far away and hard to spot visually.
Flashing modes is great for nighttime hunting, walking, or emergencies.
5.Upgrade network to support 2G+4G
-Dual Network Support (2G + 4G LTE): The tracker can automatically switch between 2G and 4G based on signal availability, ensuring stable coverage in more regions.
-Faster Data Transmission: 4G LTE enables quicker updates and smoother real-time tracking with lower latency.
-Better Coverage: 4G networks are more widely available and supported than aging 2G infrastructure, especially in urban and rural areas.
-Future-Proof: As many countries begin shutting down 2G networks, our 2G+4G tracker ensures long-term usability.
-Power Efficient: Smart network switching minimizes battery consumption by using the most efficient signal available.
6.180 Days Tracking Route Playback means that the IK122T PRO Hound GPS Tracker can store and show the movement history of the dog for the past 180 days.

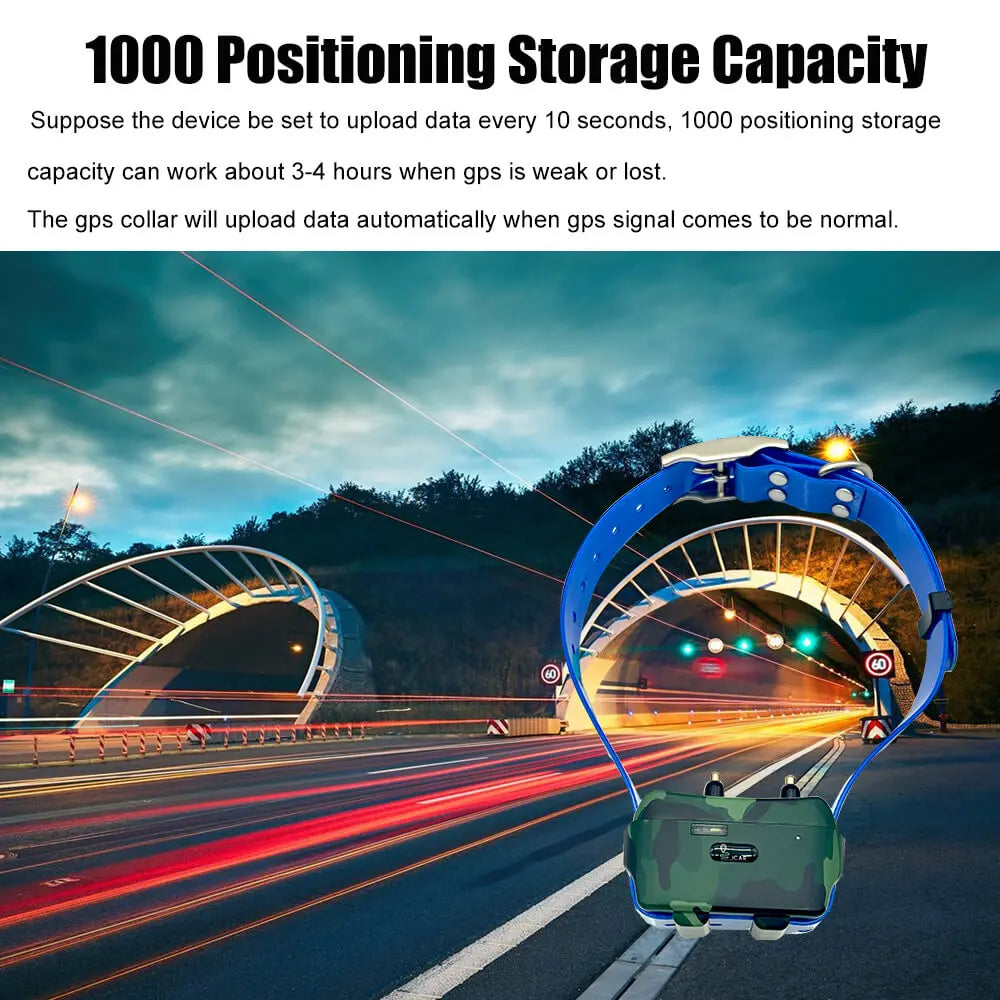

7. 1000 Positioning Storage Capacity means that the GPS Collar IK122T pro can store up to 1000 location points (GPS coordinates) in its internal memory.
What It Means:
Each "positioning" is a recorded GPS location (with date, time, coordinates).
The tracker can store 1000 locations even without network (ideal for poor signal areas).
Once connected to the network again, the tracker can upload all stored data to the server or app.
8. Geo-Fence (short for "Geographic Fence") is a virtual boundary that you can set on a map in our GPS tracking app. When the tracker enters or leaves this area, it will send you an instant alert.
What is Geo-Fence?
A Geo-Fence is a custom digital zone you draw (circle, square, or custom shape) on the map. It's used to monitor the movement of your hunting dog in the forest.
9. No Distance Limit for Tracking and Training means that the GPS tracker IK122T Pro uses cellular (4G/2G) network to communicate, allowing you to track and train your dog from anywhere in the world — as long as both your phone and the tracker have signal.

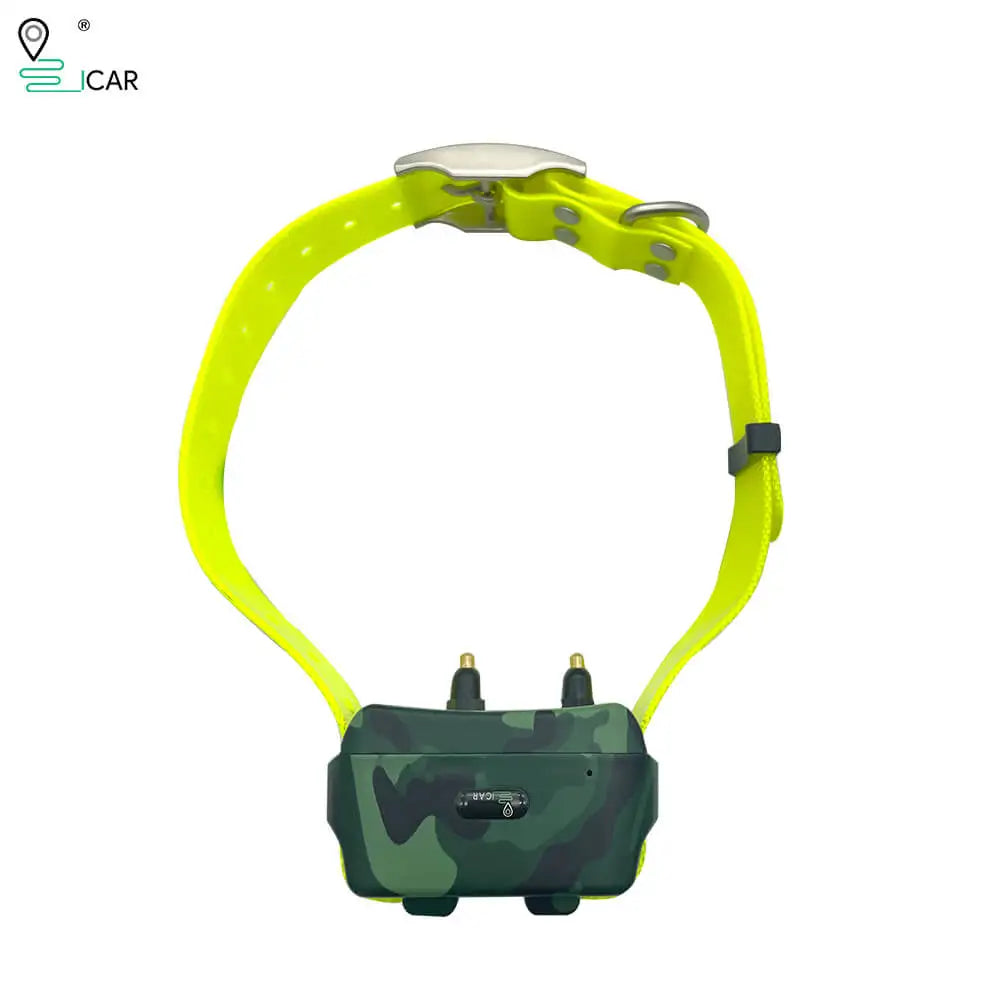

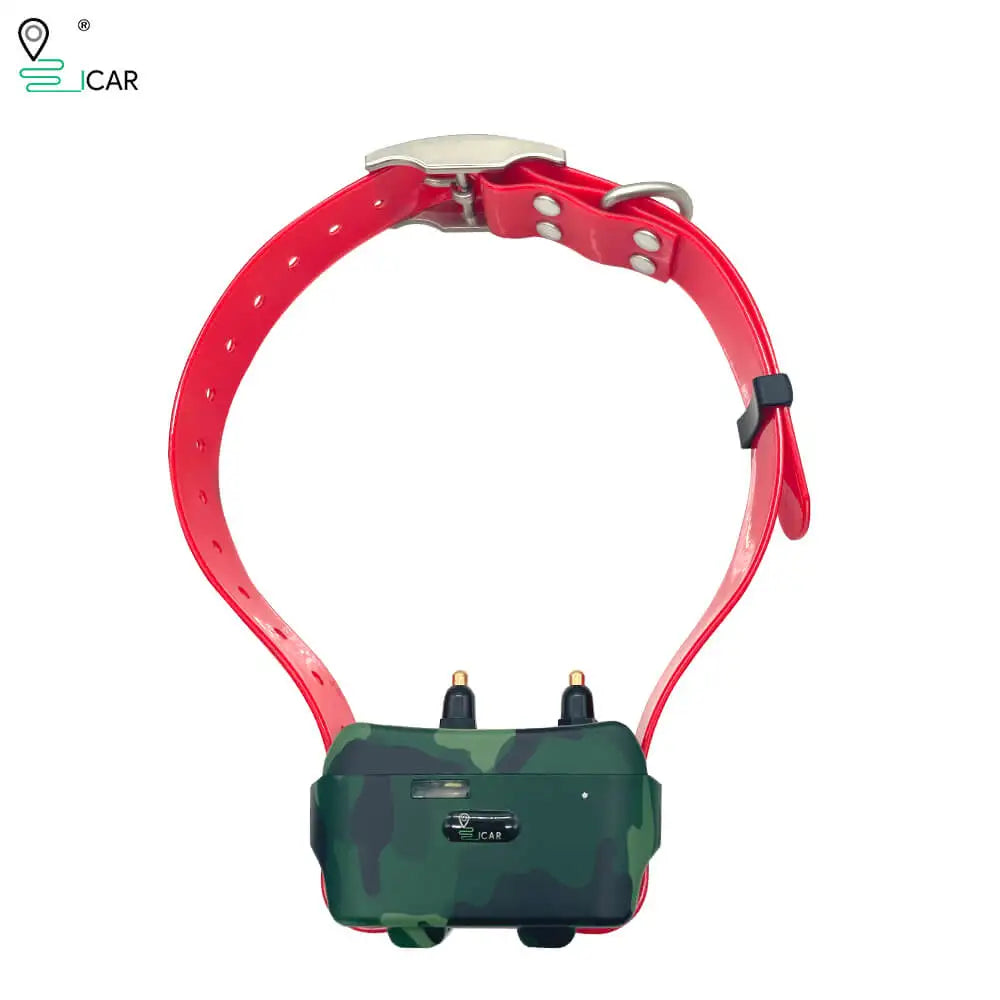

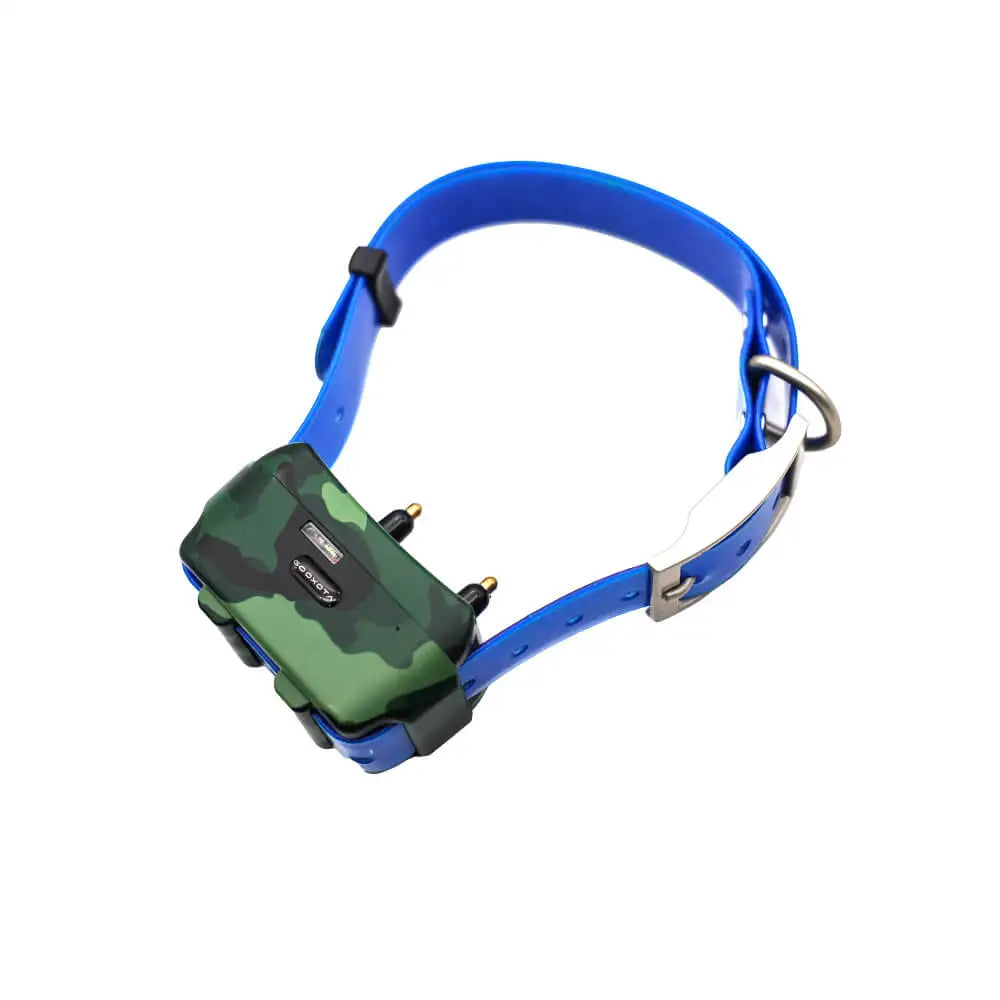

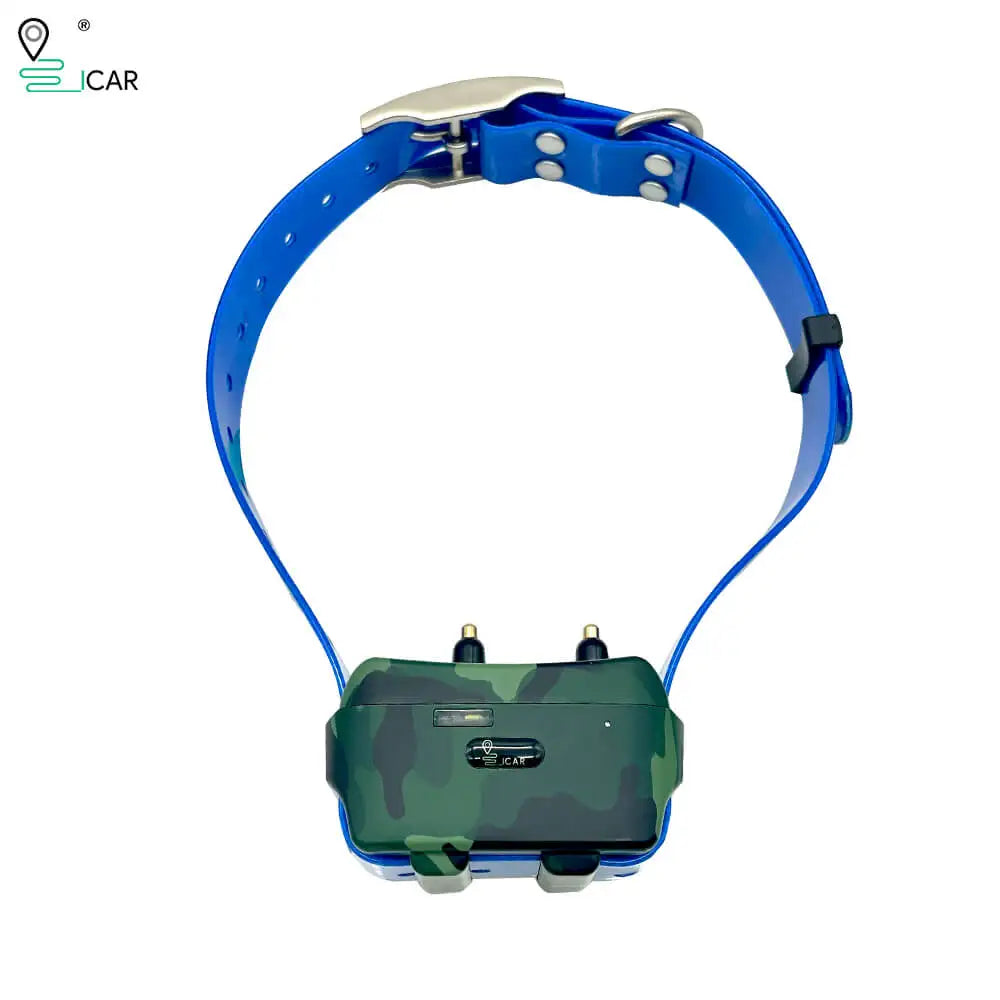

10.Electronic Shock to Train Dogs (also called E-shock, static correction, or electric stimulation) is a feature to help correct unwanted behavior remotely.
⚡ What is E-Shock?
E-Shock delivers a mild electric pulse through the collar when activated by the user via mobile app. It’s meant to get the dog's attention, not to harm.
🔧 How It Works:
The GPS collar is worn around the dog's neck.
You send a command from the app or remote.
The collar delivers a controlled static stimulation (adjustable 1-9 strength).
The dog feels a light shock and learns to respond (like returning or stopping barking).
11. IP68 Waterproof is a top-tier waterproof and dustproof rating for electronic devices like GPS trackers, meaning the device is fully protected against dust and can be submerged in water deeper than 1 meter for an extended time without damage.
💧 What Does IP68 Mean?
IP = Ingress Protection
6 = Total protection from dust and dirt (highest level)
8 = Protection from continuous immersion in water (usually up to 1.5m or more for 30+ minutes)
🐶 For Dog GPS Trackers:
-Your dog can run, swim, roll in mud, or hunt in the rain without damaging the tracker.
-Works in heavy rain, wet forests, snow, and rivers.
12. Buzzer to Help Find Dog
A buzzer (or beep sound) in a GPS dog tracker is a built-in audio alert that helps you locate your dog by sound, especially when it's nearby but out of sight — such as in dense forest, bushes, or at night.
🐶 How the Buzzer Works:
You press a button on the mobile app or remote.
The tracker emits a loud beep or buzzing sound.
You follow the sound to locate your dog easily.

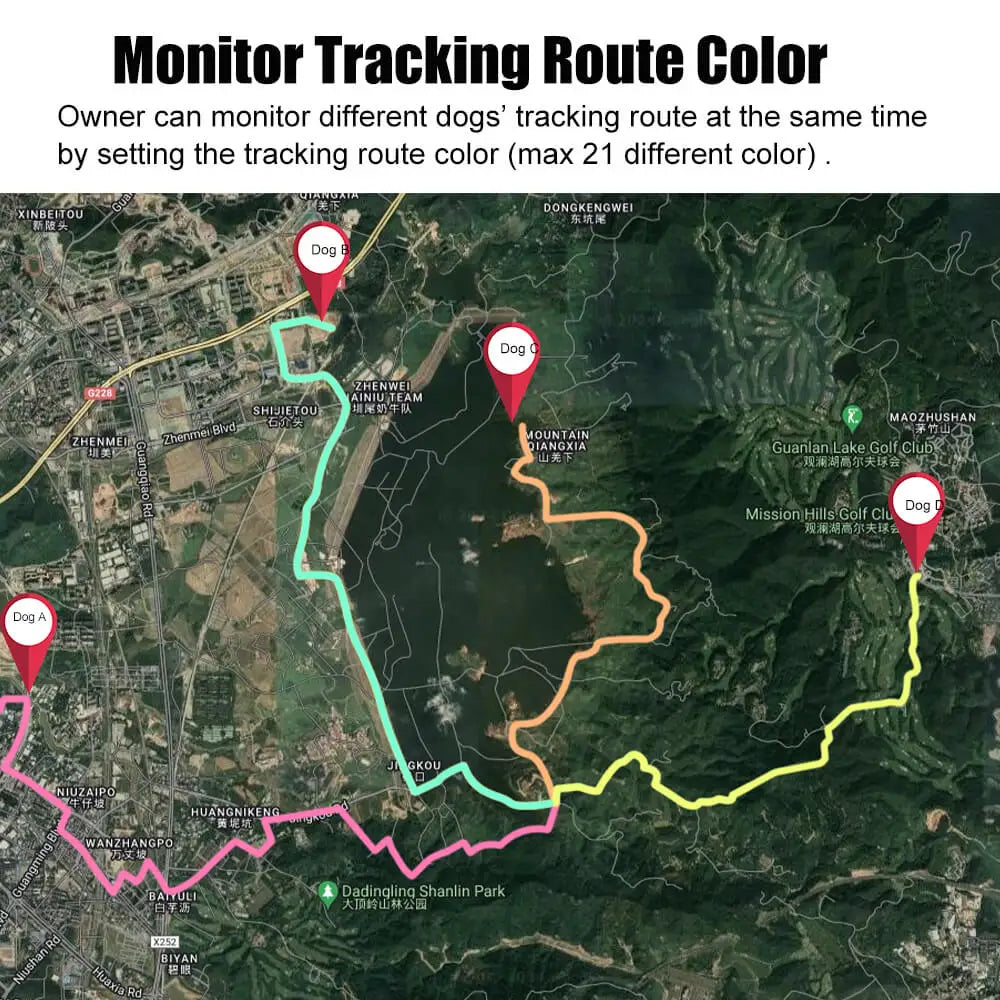

13. Multi-Dog Tracking with Color-Coded Routes (Up to 21 Dogs)
Our GPS tracker system supports monitoring multiple dogs at the same time — each with a unique tracking route color. This makes it easy for the owner to distinguish and manage multiple dogs during hunting, training, or outdoor activities.
-Up to 21 Colors: Assign a different color to each dog (e.g., red, blue, green, yellow).
-Clear Route Display: View multiple dogs’ paths on the same map without confusion.
-Instantly recognize which dog is where — even if routes overlap.
Only in the monitor center can check Color-Coded Routes, in the singal tracking interface for singal device, it will be regular default color route only.
14. Two-Way Communication – Talk & Listen to Your Dog Anytime
Two-way communication is a feature in advanced GPS dog trackers that allows you to talk to your dog through the collar and hear ambient sounds from the dog’s surroundings — just like a walkie-talkie.
Demo: icardemo password: 123456

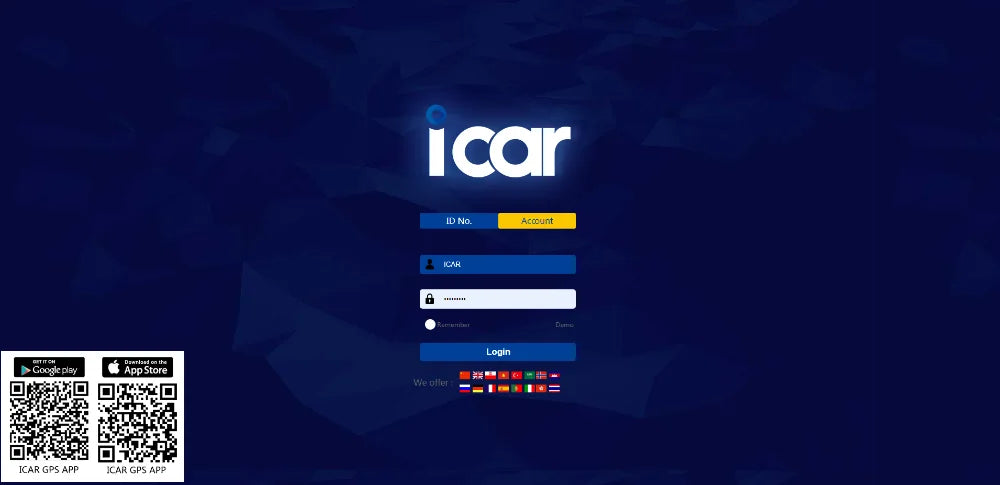

Track your devices on our site : www.icargps.net
Or you can download the app to track it.
IK122T Dog GPS Tracker User Manual

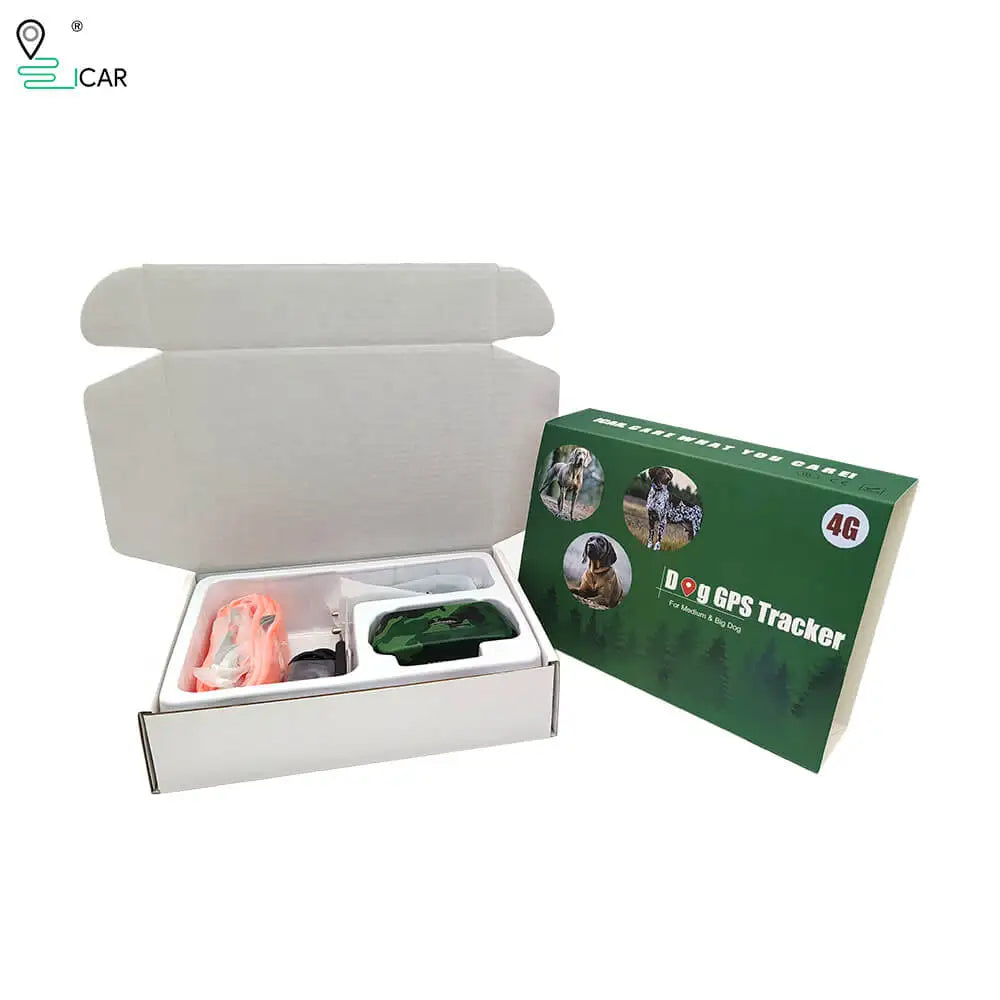

1pc*ICAR GPS Tracker IK122T Pro
1pc* Magnetic USB cable
1pc* User manual
1pc* Dog Collar
1pc* Screw pen
2pc* Replacement screws
1pc* gift box
l Q：Start up Fail?
l A：Check the device power on or not.
l Q：The device can not obtain location information?
l A：Place the unit at the open area to test.
l Q：How to choose SIM card?
l A: the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit.
l Q: How to use in the foreign countries?
l A：please set the APN before use，please edit the text “APN123456 CMNET “ and send it to the SIM card of the device，CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.
