IoTorero WLED ESP32 Addressable Strip Controller 4CH 16A Relay Built In WS2811 WS2812B WS2814 WS2815 Works With Home Assistant
IoTorero WLED ESP32 Addressable Strip Controller 4CH 16A Relay Built In WS2811 WS2812B WS2814 WS2815 Works With Home Assistant
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: IoTorero
Communication method: Wi-Fi
Hign-concerned Chemical: None
Origin: Mainland China

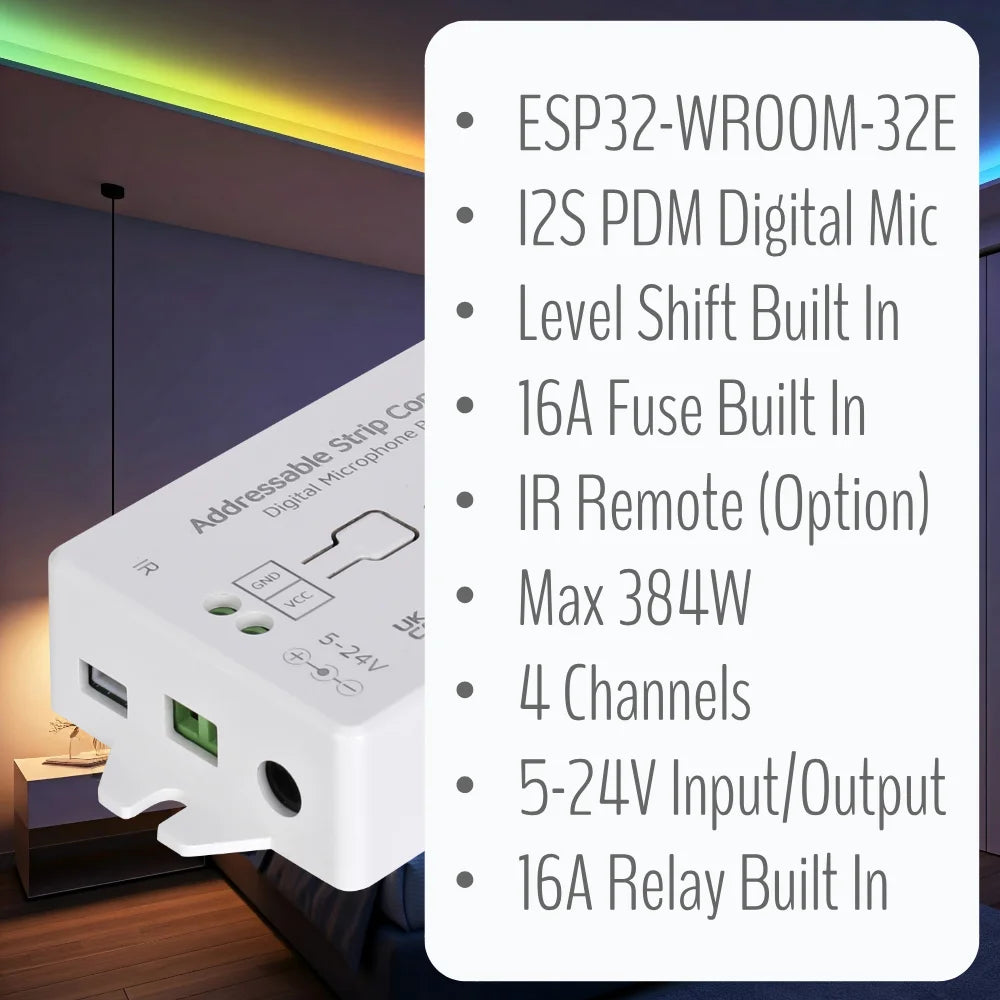

WLED Sounds Reactive ESP32 Addressable Strip Controller
ESP32 -WROOM-32E Chipset
I2S PDM Digital Microphone Built in
Level Shift Built In
16A Relay BUilt In
16A Fuse Built In

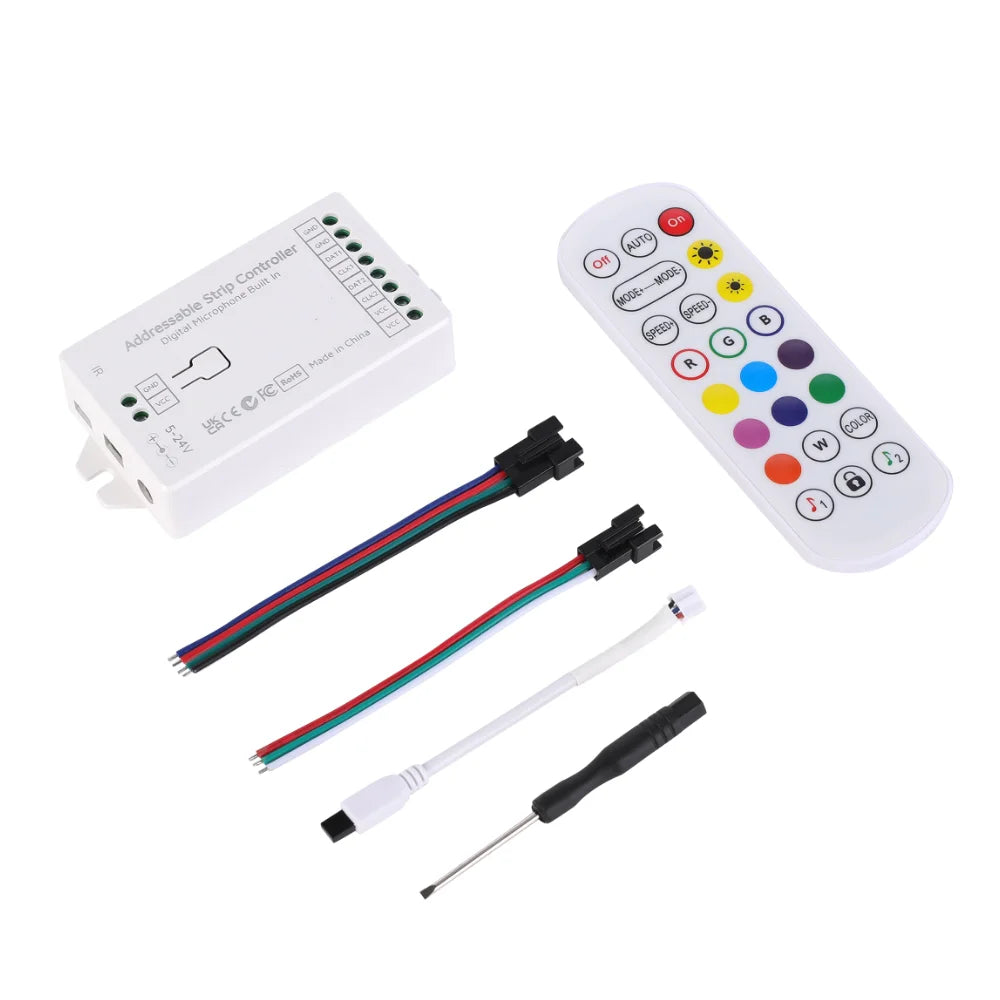

IR Remote Control (optional)
Input: 5V-24V
MaxLoad: 16 A
2 Channels ( Up to 4 Channels)
16A Relay Built In
Built-in 16A relay for complete power disconnection in standby mode, ensuring enhanced safety and energy efficiency

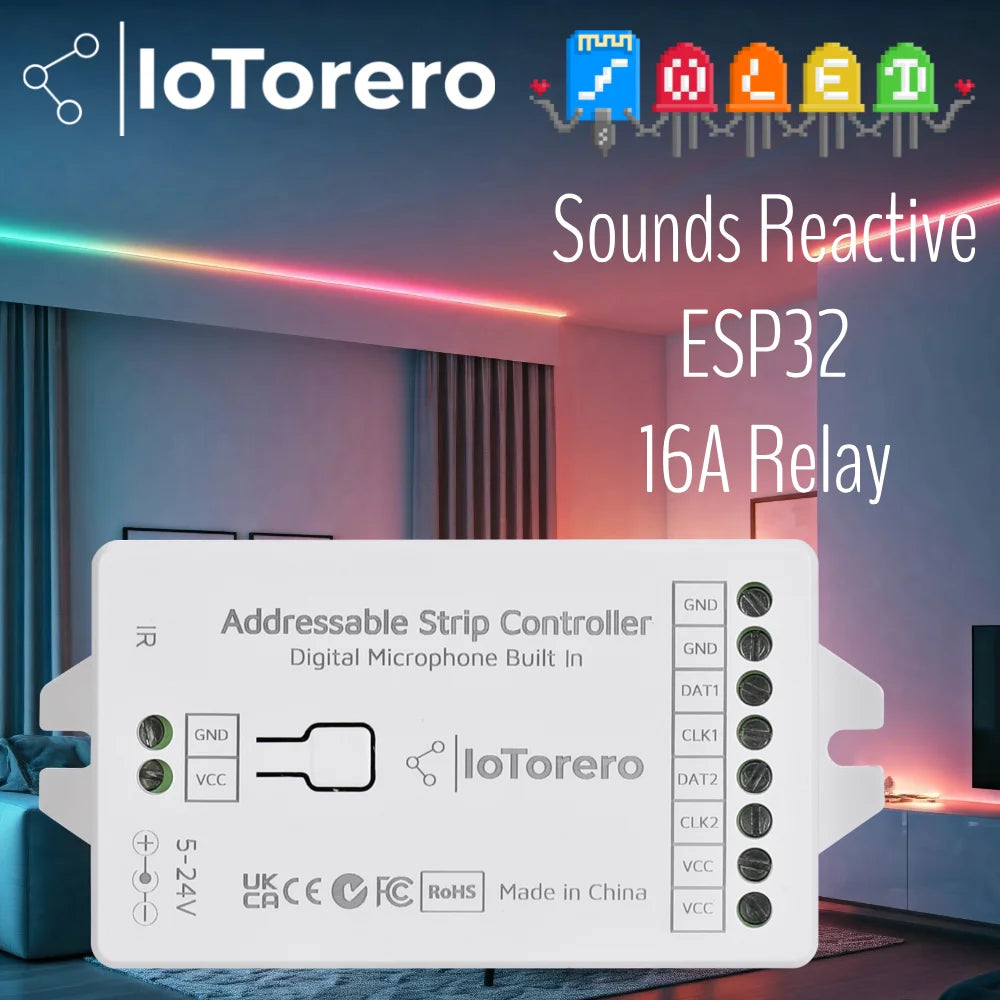

Sounds Reactive
Built-in high-sensitivity I2S PDM digital microphone enables dynamic music-reactive WLED lighting effects. Synchronize your WLED addressable LED strips with audio for an immersive lighting experience.

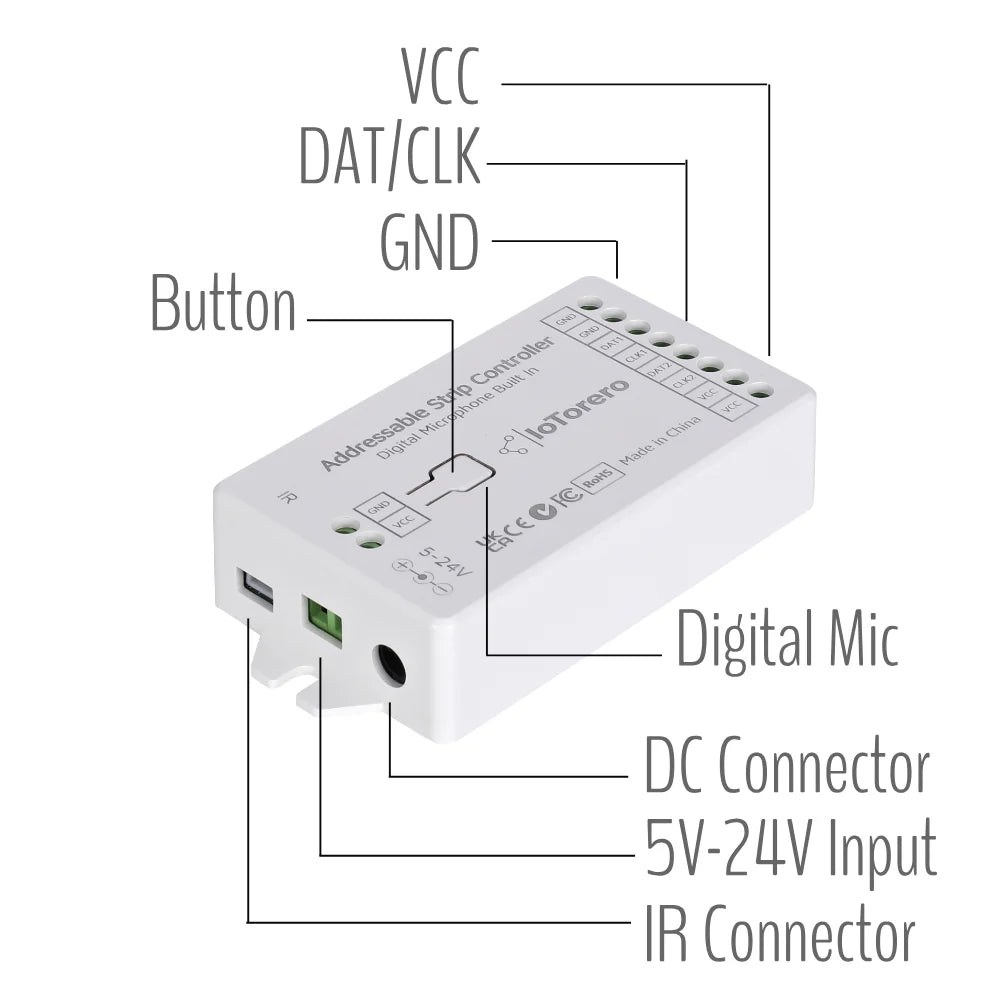

GPIO
Button（GPIO0）
Relay（GPIO2）
DATA1（GPIO18）
DCLK1（GPIO5）
DATA2（GPIO17）
DCLK2（GPIO16）
IR（GPIO25）
I2S_SDPIN（GPIO32 ）
I2S_WSPIN（GPIO15 ）
I2S_CKPIN（-1）
